SPOTLIGHTS

Lens for Spotlights, 40mm

8Wx2 Gears-Spotlight, UltraPower, 20mm White. Flat Ultra-Power spotlight with up to 400 Lumen, CNC manufactured aluminium reflector with 20mm diameter and assembly plate for horizontal cooling. Ideal on undercarriages or as pop-up spotlights. The enclosed heatsink should necessarily be glued on for cooling purposes. It is recommended to directly glue the spotlight on the undercarriage leg with thermal conductive adhesive, then heatsink and mounting flange can be completely removed, so that only the reflector remains. Attention: this Ultra-Power luminaire has no temperature protection, a wärmeschlüssige (?) connection to the carrier (undercarriage leg) is highly recommended. Direct operation with 2S LiPo (8V). With 3S (12V), the additional resistor has to be soldered in or use a 8W connection cable (accessories). Please ensure sufficient cooling air during operation. . Technical Data. Performance: 4W reference power. Voltage: 8V, use enclosed resistor for 12V. Electricity: 0.7A. Beam angle: ~100°. Light intensity: ~400 Lumen WHITE. Light intensity: ~350 Lumen WARMWHITE. Dimension: D20x39x9mm. Weight: 7g (without cable). Delivery: ready to use with 1m connection cable, heatsink and additional resistor for 3S operation. The reference power is a comparison value between our offered lights. It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology. Pay always attention to the operating temperature, we do not assume any warranty in case of overheating. Note: The LED lights are extremely bright! Never look directly into a LED!.

8Wx2 Ultra-Power Spotlight, 20mm, T-Fuse White. Ultra-power in a very compact, CNC manufactured 20mm aluminium spotlight. Absolute innovation concerning luminous power: 4x s.c. cree-chips are bundled in the LED emitter in order to achieve an unprecedented performance in the smallest of spaces. Top performance!. Direct operation with 2S LiPo (8V). Please ensure sufficient cooling air during operation. For the first time in model making, the spotlights are equipped with an integrated overtemperature protection. If the enclosure becomes too warm, the light will be safely switched off. Without any further cooling, do not operate such spotlights more than 4-5 minutes at a time. Otherwise the protection will switch off the light or let it blink. . Technical data. Performance: 8Wx2 reference power. Overtemperature protection: switch-off and clocking of the light at 65-70°. Voltage: 2S/8V (3S/12V), use enclosed resistor additionally for 12V!. Electricity: 0.7A. Beam angle: ~100°. Light intensity: ~400 Lumen WHITE. Light intensity: ~350 Lumen WARMWHITE. Dimension: D20x55mm, mounting hole D10mm. Weight: 11g (without cable). Delivery: ready to use with 1m connection cable for 3S operation. With the X2 technique high power LEDs are operated in a "cluster". These achieve double the light output for the same heat or the same light output at half heat dissipation. Yet our X2 lights are still fully compatible with all our other lamps. If X2 lights, such as spotlights, are supplied with separate cables, these cables must be used in the delivered wiring! X2 lights are reacting more strongly on a weakening battery. . The reference power is a comparison value between our offered lights. It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology. Pay always attention to the operating temperature, we do not assume any warranty in case of overheating. Note: The LED lights are extremely bright! Never look directly into a LED!.

8Wx2 Ultra-Power Spotlight, 15mm, T-Fuse White. Ultra-power in a very compact, CNC manufactured aluminium reflector (15mm diameter). Absolute innovation concerning luminous power: 4x s.c. cree-chips are bundled in the LED emitter in order to achieve an unprecedented performance in the smallest of spaces. Top performance!. Direct operation with 2S LiPo (8V). Please ensure sufficient cooling air during operation. For the first time in model making, the spotlights are equipped with an integrated overtemperature protection. If the enclosure becomes too warm, the light will be safely switched off. Without any further cooling, do not operate such spotlights more than 3-4 minutes at a time. Otherwise the protection will switch off the light or let it blink. . Technical data. Performance: 8Wx2 reference power. Overtemperature protection: switch-off and clocking of the light at 65-70°. Voltage: 2S/8V (3S/12V), use enclosed resistor additionally for 12V!. Electricity: 0.7A. Beam angle: ~110°. Light intensity: ~400 Lumen WHITE. Light intensity: ~350 Lumen WARMWHITE. Dimension: D15x53mm, mounting hole D10mm. Weight: 9g (without cable). Delivery: ready to use with 1m connection cable for 3S operation. With the X2 technique high power LEDs are operated in a "cluster". These achieve double the light output for the same heat or the same light output at half heat dissipation. Yet our X2 lights are still fully compatible with all our other lamps. If X2 lights, such as spotlights, are supplied with separate cables, these cables must be used in the delivered wiring! X2 lights are reacting more strongly on a weakening battery. . The reference power is a comparison value between our offered lights. It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology. Pay always attention to the operating temperature, we do not assume any warranty in case of overheating. Note: The LED lights are extremely bright! Never look directly into a LED!.

4W Eco-Spotlight with lens, 22mm WHITE. Short and cheap high-performance spotlight. Compact construction as landing light or Front-ACL. Small heatsink for continuous operation with air cooling. Direct operation with 2S LiPo (8V). With 3S (12V), the additional enclosed resistor has to be soldered in or use a 4W adaption cable (accessories). . Technical data. Performance: 4W reference power. Voltage: 8V, use enclosed resistor additionally for 12V!. Electricity: 0.35A. Beam angle: ~60°. Light intensity: ~100 Lumen. Dimension: D21.5x21mm. Weight: 7g (without cable). Delivery: ready to use with 1m connection cable and additional resistor for 3S operation. The reference power is a comparison value between our offered lights. It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology. Pay always attention to the operating temperature, we do not assume any warranty in case of overheating. Note: The LED lights are extremely bright! Never look directly into a LED!.

8W Eco-Spotlight, convex 60°, 25mm White. When flying at daylight, every Watt light power counts, the more the better! With increasing performance the heat loss of the high-performance LEDs increases too. To allow small dimensions and low weight, we provide most of the strongest lights with an overtemperature protection. safety counts!. Powerful high-performance spotlight in a compact and cheap enclosure. These spotlights are constructed in such a way that continuous load is possible, because if it gets too hot, the spotlight simply switches off, thus protecting the luminaire and its model against damage. Nevertheless, please check temperature after installation. If constantly operated at the maximum capacity, the life span of the LED is affected. Direct operation with 2S LiPo (8V). With 3S (12V), the additional enclosed resistor has to be soldered in or use a 8W adaption cable (accessories). . Technical data. Performance: 8W reference power. Overtemperature protection: switch-off and clocking of the light at 65-70°. Voltage: 8V, use enclosed resistor for 12V!. Electricity: 0.70A. Beam angle: ~60°. Light intensity: ~200 Lumen WHITE. Light intensity: ~190 Lumen WARMWHITE. Dimension: D25mm. Weight: 10g (without cabel). Delivery: ready to use with 1m connection cable and additional resistor for 3S operation. The reference power is a comparison value between our offered lights. It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology. Pay always attention to the operating temperature, we do not assume any warranty in case of overheating. Note: The LED lights are extremely bright! Never look directly into a LED!.

20mm Drop-Out Spotlight HV, REVERSE, 4x2W. Our new series of folding mechanisms allows usage of powerful spotlights for folding out. Modelled after real airplanes, drop-out spotlights are now easily and quickly realisable in model aircrafts. Whether for optical reasons or as an additional brake flap, a drop-out spotlight is an enormous enrichment. Now with diamond HV servos which is approbated for each system. AUXILIARY spotlights folds out against the direction of the flight. In driven state is only the backside visable, not the reflector. Flat 20mm 8Wx2 spotlights are used for our pre-assembled spotlights. They allow enormous luminous power in small dimensions. A diamond HV servo is integrated in the mechanics. The assemblys are already built, it's possible that it's needed to glue the base plate together. Spotlights of high-quality aluminium reflector. Wide angle beam: 110°. Completely made of massive aluminium, CNC manufactured. Available in WHITE and WARMWHITE. Diamond HV servo included. Pre-assembled. Technical data. Performance: 2x4W reference power. Voltage: 8V, use enclosed resistor for 12V!. Electricty: 0.35A. Beam angle: ~100°. Light Intensity: 100x2 Lumen WHITE. Light Intensity: 95x2 Lumen WARMWHITE. Weight: 20g (Servo included). Dimension: 52x22mm, Height 12,5mm. . With the X2 technique high power LEDs are operated in a "cluster". These achieve double the light output for the same heat or the same light output at half heat dissipation. Yet our X2 lights are still fully compatible with all our other lamps. If X2 lights, such as spotlights, are supplied with separate cables, these cables must be used in the delivered wiring! X2 lights are reacting more strongly on a weakening battery. . The reference power is a comparison value between our offered lights. It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology. Pay always attention to the operating temperature, we do not assume any warranty in case of overheating. Note: The LED lights are extremely bright! Never look directly into a LED!.

16mm Drop-Out Spotlight HV, REVERSE, 4x2W. Miniatur spotlights for folding out. Modelled after real airplanes, drop-out spotlights are now easily and quickly realisable in model aircrafts. Whether for optical reasons or as an additional brake flap, a drop-out spotlight is an enormous enrichment. Now with diamond HV servos which is approbated for each system. AUXILIARY spotlights folds out against the direction of the flight. In driven state is only the backside visable, not the reflector. Flat 16mm spotlights HighGrade are used for our pre-assembled spotlights. They allow enormous luminous power in small dimensions. A diamond HV servo is integrated in the mechanics. The assemblys are already built, it's possible that it's needed to glue the base plate together. Spotlights of high-quality aluminium reflector. Wide angle beam: 110°. Completely made of massive aluminium, CNC manufactured. Available in WHITE and WARMWHITE. Diamond HV servo included. Pre-assembled. Technical data. Performance: 2x4W reference power. Voltage: 8V, use enclosed resistor for 12V!. Electricty: 0.35A. Beam angle: ~100°. Light Intensity: 100x2 Lumen WHITE. Light Intensity: 95x2 Lumen WARMWHITE. Weight: 18g (Servo included). Dimension: 53x22mm, Height 12,5mm. . With the X2 technique high power LEDs are operated in a "cluster". These achieve double the light output for the same heat or the same light output at half heat dissipation. Yet our X2 lights are still fully compatible with all our other lamps. If X2 lights, such as spotlights, are supplied with separate cables, these cables must be used in the delivered wiring! X2 lights are reacting more strongly on a weakening battery. . The reference power is a comparison value between our offered lights. It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology. Pay always attention to the operating temperature, we do not assume any warranty in case of overheating. Note: The LED lights are extremely bright! Never look directly into a LED!.

40mm Drop-Out Spotlight 8Wx2, HV, T-Fuse. Our new series of folding mechanisms allows useage of powerful spotlights for folding out. Modeled after real airplanes, drop-out spotlights are now easily and quickly realisable in model aircrafts. Wether for optical reasons or as an additional brake flap, a drop-out spotlight is an enormous enrichment. . Flat 40mm 8Wx2 spotlights with temperature protection are used for our pre-assembled spotlights. They allow enormous luminous power in small dimensions. A Savöx SH-0254 is integrated in the mechanics, which means you only have to define the mounting position and push rod. The construction with the enclosed parts allows two different mounting positions of the rotation axis to the servo: behind the axis or above the axi for fuslage mounting. Spotlights of high-quality aluminium reflector. Wide angle beam: 110°. Completely made of massive aluminium, CNC manufactured. Available in WHITE and WARMWHITE. Integrated overtemperature protection. Diamong HV servo included. Pre-assembled. Various mounting positions!. Technical Data. Performance: 2x8W reference power. Voltage: 8V, use enclosed resistor for 12V!. Electricty: 0.7A. Abstrahlwinkel: ~100°. Light Intensity: 200x2 Lumen WHITE. Light Intensity: 180x2 Lumen WARMWHITE. Weight: 50g (Servo included). Overtemperature protection: switch-off and clocking of the light at 65-70°. Delivery: ready to use with 1m connection cable and additional resistor for 3S operation. . . With the X2 technique high power LEDs are operated in a "cluster". These achieve double the light output for the same heat or the same light output at half heat dissipation. Yet our X2 lights are still fully compatible with all our other lamps. If X2 lights, such as spotlights, are supplied with separate cables, these cables must be used in the delivered wiring! X2 lights are reacting more strongly on a weakening battery. . The reference power is a comparison value between our offered lights. It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology. Pay always attention to the operating temperature, we do not assume any warranty in case of overheating. Note: The LED lights are extremely bright! Never look directly into a LED!.

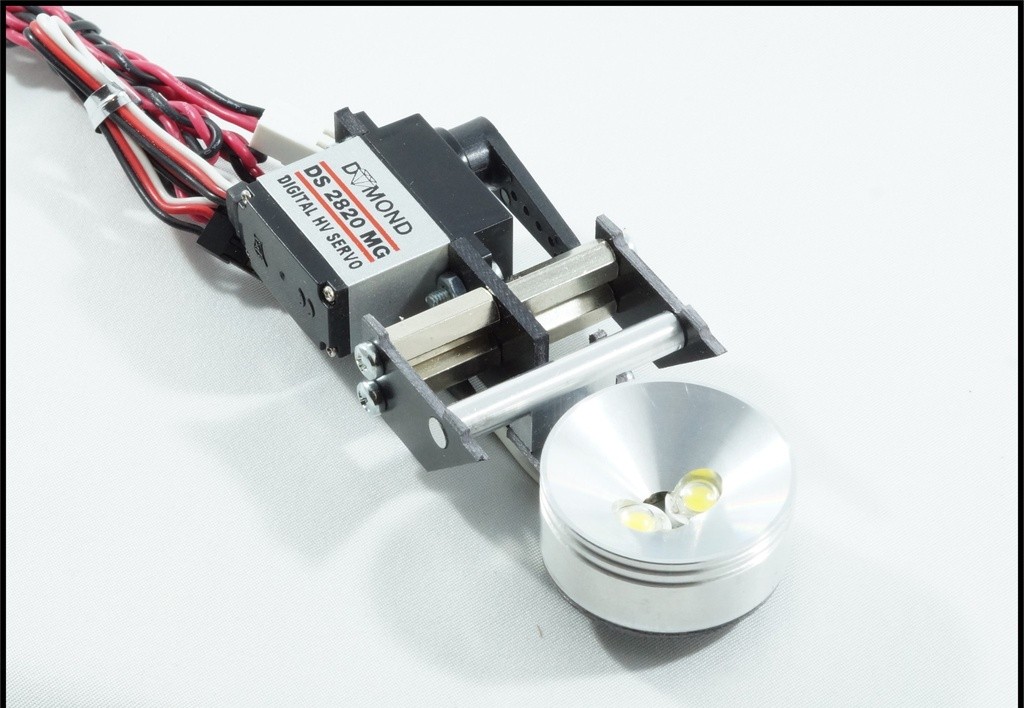

30mm Drop-Out Spotlight 8Wx2, T-Fuse - White

8Wx2 Alu-Spotlight, 40mm, T-Fuse White. This innovative 40mm category spotlight is suitable for all larger models and provides, on the basis of its enormous light power and wide angle beam, maximum visibility under all conditions. The integrated overtemperature protection was implemented in the mounted heatsink. In the event of overloading, it switches off the spotlight. Ideal in tiptanks, hood or also as landing light in big high-winger. Due to the short construction, they are perfectly suitable for fuselage nose and drop down spotlight. High-quality aluminium reflector. Wide angle beam: 100°. Completely made of massive aluminium, CNC manufactured. x2-technology for doubling light intensity. Available in WHITE and WARMWHITE. Integrated overtemperature protection. Technical Data. Performance: 2x8W reference power. Overtemperature protection: switch-off and clocking of the light at 65-70°. Voltage: 8V, use enclosed resistor additionally for 12V!. Electricity: 0.7A. Beam angle: ~100°. Light intensity: 200x2 Lumen WHITE. Light intensity: 180x2 Lumen WARMWHITE. Dimension: D40x23mm. Weight: 25g (without cable). Delivery: ready to use with 1m connection cable and additional resistor for 3S operation. With the X2 technique high power LEDs are operated in a "cluster". These achieve double the light output for the same heat or the same light output at half heat dissipation. Yet our X2 lights are still fully compatible with all our other lamps. If X2 lights, such as spotlights, are supplied with separate cables, these cables must be used in the delivered wiring! X2 lights are reacting more strongly on a weakening battery. . The reference power is a comparison value between our offered lights. It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology. Pay always attention to the operating temperature, we do not assume any warranty in case of overheating. Note: The LED lights are extremely bright! Never look directly into a LED!.

8Wx2 Gears-Spotlight, UltraPower, 26mm White. Flat Ultra-Power spotlight with up to 400 Lumen, CNC manufactured aluminium reflector with 26mm diameter. The spotlight must be glued directly on the gear leg with thermal conductive adhesive. Attention: this Ultra-Power luminaire has no temperature protection, a heat bridge connection to the carrier (undercarriage leg) is highly recommended. Direct operation with 2S LiPo (8V). With 3S (12V), the additional resistor has to be soldered in or use a 8W connection cable (accessories). Please ensure sufficient cooling air during operation. . Technical Data. Performance: 8Wx2 reference power. Voltage: 8V, use enclosed resistor for 12V, 0.7A. Beam angle: ~100°. Light intensity: ~400 Lumen WHITE. Light intensity: ~350 Lumen WARMWHITE. Dimension: D26x11mm. Weight: 10g (without cable). Delivery: ready to use with 1m connection cable and additional resistor for 3S operation. The reference power is a comparison value between our offered lights. It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology. Pay always attention to the operating temperature, we do not assume any warranty in case of overheating. Note: The LED lights are extremely bright! Never look directly into a LED!.

8W Eco-Spotlight with lens, 22mm, T-Fuse White When flying at daylight, every Watt light power counts, the more the better! With increasing performance, the heat loss of the high-performance LEDs...
